# Dolphin: Document Image Parsing via Heterogeneous Anchor Prompting
Dolphin (**Do**cument Image **P**arsing via **H**eterogeneous Anchor Prompt**in**g) is a novel multimodal document image parsing model following an analyze-then-parse paradigm. This repository contains the demo code and pre-trained models for Dolphin.
## ๐ Overview

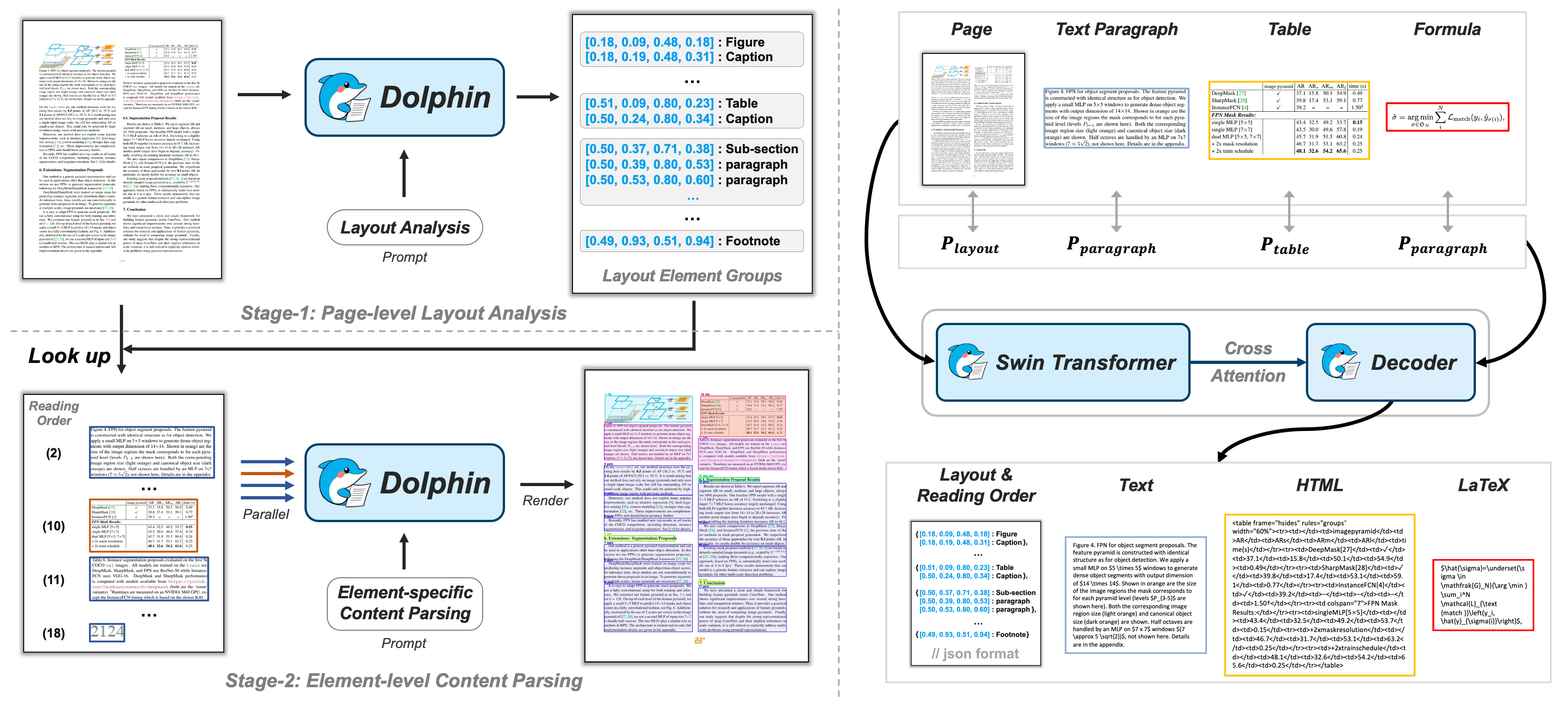

Document image parsing is challenging due to its complexly intertwined elements such as text paragraphs, figures, formulas, and tables. Dolphin addresses these challenges through a two-stage approach:
1. **๐ Stage 1**: Comprehensive page-level layout analysis by generating element sequence in natural reading order
2. **๐งฉ Stage 2**: Efficient parallel parsing of document elements using heterogeneous anchors and task-specific prompts
Dolphin achieves promising performance across diverse page-level and element-level parsing tasks while ensuring superior efficiency through its lightweight architecture and parallel parsing mechanism.
## ๐ Demo

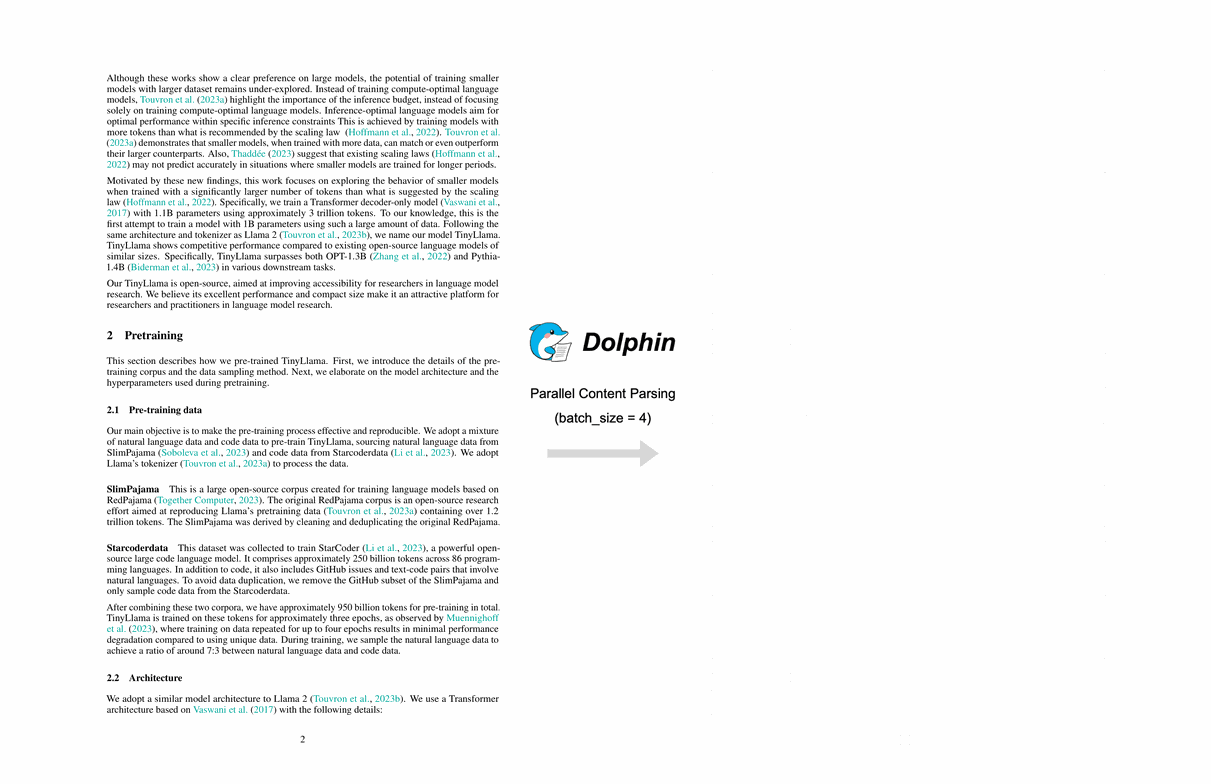

Try our demo on [Demo-Dolphin](http://115.190.42.15:8888/dolphin/).
## ๐
Changelog
- ๐ฅ **2025.06.30** Added [TensorRT-LLM support](https://github.com/bytedance/Dolphin/blob/master/deployment/tensorrt_llm/ReadMe.md) for accelerated inference๏ผ
- ๐ฅ **2025.06.27** Added [vLLM support](https://github.com/bytedance/Dolphin/blob/master/deployment/vllm/ReadMe.md) for accelerated inference๏ผ
- ๐ฅ **2025.06.13** Added multi-page PDF document parsing capability.
- ๐ฅ **2025.05.21** Our demo is released at [link](http://115.190.42.15:8888/dolphin/). Check it out!
- ๐ฅ **2025.05.20** The pretrained model and inference code of Dolphin are released.
- ๐ฅ **2025.05.16** Our paper has been accepted by ACL 2025. Paper link: [arXiv](https://arxiv.org/abs/2505.14059).
## ๐ ๏ธ Installation
1. Clone the repository:
```bash
git clone https://github.com/ByteDance/Dolphin.git
cd Dolphin
```
2. Install the dependencies:
```bash
pip install -r requirements.txt
```
3. Download the pre-trained models using one of the following options:
**Option A: Original Model Format (config-based)**
Download from [Baidu Yun](https://pan.baidu.com/s/15zcARoX0CTOHKbW8bFZovQ?pwd=9rpx) or [Google Drive](https://drive.google.com/drive/folders/1PQJ3UutepXvunizZEw-uGaQ0BCzf-mie?usp=sharing) and put them in the `./checkpoints` folder.
**Option B: Hugging Face Model Format**
Visit our Huggingface [model card](https://huggingface.co/ByteDance/Dolphin), or download model by:
```bash
# Download the model from Hugging Face Hub
git lfs install
git clone https://huggingface.co/ByteDance/Dolphin ./hf_model
# Or use the Hugging Face CLI
huggingface-cli download ByteDance/Dolphin --local-dir ./hf_model
```
## โก Inference
Dolphin provides two inference frameworks with support for two parsing granularities:
- **Page-level Parsing**: Parse the entire document page into a structured JSON and Markdown format
- **Element-level Parsing**: Parse individual document elements (text, table, formula)
### ๐ Page-level Parsing
#### Using Original Framework (config-based)
```bash
# Process a single document image
python demo_page.py --config ./config/Dolphin.yaml --input_path ./demo/page_imgs/page_1.jpeg --save_dir ./results
# Process a single document pdf
python demo_page.py --config ./config/Dolphin.yaml --input_path ./demo/page_imgs/page_6.pdf --save_dir ./results
# Process all documents in a directory
python demo_page.py --config ./config/Dolphin.yaml --input_path ./demo/page_imgs --save_dir ./results
# Process with custom batch size for parallel element decoding
python demo_page.py --config ./config/Dolphin.yaml --input_path ./demo/page_imgs --save_dir ./results --max_batch_size 8
```
#### Using Hugging Face Framework
```bash
# Process a single document image
python demo_page_hf.py --model_path ./hf_model --input_path ./demo/page_imgs/page_1.jpeg --save_dir ./results
# Process a single document pdf
python demo_page_hf.py --model_path ./hf_model --input_path ./demo/page_imgs/page_6.pdf --save_dir ./results
# Process all documents in a directory
python demo_page_hf.py --model_path ./hf_model --input_path ./demo/page_imgs --save_dir ./results
# Process with custom batch size for parallel element decoding
python demo_page_hf.py --model_path ./hf_model --input_path ./demo/page_imgs --save_dir ./results --max_batch_size 16
```
### ๐งฉ Element-level Parsing
#### Using Original Framework (config-based)
```bash
# Process a single table image
python demo_element.py --config ./config/Dolphin.yaml --input_path ./demo/element_imgs/table_1.jpeg --element_type table
# Process a single formula image
python demo_element.py --config ./config/Dolphin.yaml --input_path ./demo/element_imgs/line_formula.jpeg --element_type formula
# Process a single text paragraph image
python demo_element.py --config ./config/Dolphin.yaml --input_path ./demo/element_imgs/para_1.jpg --element_type text
```
#### Using Hugging Face Framework
```bash
# Process a single table image
python demo_element_hf.py --model_path ./hf_model --input_path ./demo/element_imgs/table_1.jpeg --element_type table
# Process a single formula image
python demo_element_hf.py --model_path ./hf_model --input_path ./demo/element_imgs/line_formula.jpeg --element_type formula
# Process a single text paragraph image
python demo_element_hf.py --model_path ./hf_model --input_path ./demo/element_imgs/para_1.jpg --element_type text
```
## ๐ Key Features
- ๐ Two-stage analyze-then-parse approach based on a single VLM
- ๐ Promising performance on document parsing tasks
- ๐ Natural reading order element sequence generation
- ๐งฉ Heterogeneous anchor prompting for different document elements
- โฑ๏ธ Efficient parallel parsing mechanism
- ๐ค Support for Hugging Face Transformers for easier integration
## ๐ฎ Notice
**Call for Bad Cases:** If you have encountered any cases where the model performs poorly, we would greatly appreciate it if you could share them in the issue. We are continuously working to optimize and improve the model.
## ๐ Acknowledgement
We would like to acknowledge the following open-source projects that provided inspiration and reference for this work:
- [Donut](https://github.com/clovaai/donut/)
- [Nougat](https://github.com/facebookresearch/nougat)
- [GOT](https://github.com/Ucas-HaoranWei/GOT-OCR2.0)
- [MinerU](https://github.com/opendatalab/MinerU/tree/master)
- [Swin](https://github.com/microsoft/Swin-Transformer)
- [Hugging Face Transformers](https://github.com/huggingface/transformers)
## ๐ Citation
If you find this code useful for your research, please use the following BibTeX entry.
```bibtex
@article{feng2025dolphin,
title={Dolphin: Document Image Parsing via Heterogeneous Anchor Prompting},
author={Feng, Hao and Wei, Shu and Fei, Xiang and Shi, Wei and Han, Yingdong and Liao, Lei and Lu, Jinghui and Wu, Binghong and Liu, Qi and Lin, Chunhui and others},
journal={arXiv preprint arXiv:2505.14059},
year={2025}
}
```
